Semi Automatic Flat Labeling Machine
High-quality semi-automatic flat labeling machines for precise and efficient labeling. Ideal for small to medium production. Customizable and easy to use.
- Labels up to 30 per minute
- Delivered in as fast as 3 days
- Ideal for irregular flat surfaces
- Easy installation with video tutorials
Our semi-automatic flat labeling machine is capable of labeling a variety of flat surfaces on different products. By adjusting the labeling mechanism, it can handle labeling on uneven surfaces such as concave or curved areas. The machine can also be customized with different fixtures to label irregularly shaped items. Additionally, it supports optional ribbon coders or inkjet printers to print production dates and batch numbers directly on the labels, achieving a seamless coding-labeling integration.
Working Principle: The machine operates by using a sensor to detect the product’s position or a foot pedal signal. Once detected, the suction head descends to apply the label and press it into place. The head then retracts to pick up the next label and waits for the next signal to begin the labeling cycle.
Operation Process: The process starts with placing the product on the machine. Once the sensor detects the product’s position (either automatically or manually), the machine proceeds to apply and press the label automatically. Finally, the labeled product is removed, and the machine is ready for the next item.
Semi Automatic Flat Labeling Machine Technical Parameters
These parameters can be adjusted based on specific customer requirements to ensure optimal performance in various labeling scenarios, providing flexibility for different product types and production environments.
Model |
Parameters |
|---|---|
|
Labeling Accuracy |
+/- 0.5mm |
|
Labeling Speed |
30 pcs/min |
|
Product Size |
Length: 20mm ~ 200mm Width: 20mm ~ 150mm Thickness: 0.2mm ~ 120mm |
|
Labels Applied |
1 or 2 (front & back) |
|
Label Size |
Length: 20mm ~ 100mm Width: 15mm ~ 150mm |
|
Suitable Label Inner Diameter |
Ø76mm |
|
Suitable Label Outer Diameter |
Ø300mm |
|
Control System |
PLC with touch screen |
|
Labeling Type |
Self-adhesive roll labels |
|
Equipment Size |
840mm×470mm×840mm |
|
Power Supply |
220V/50HZ |
|
Weight |
48Kg |
|
Price |
$$$ |
|
Additional Features (Optional) |
Inkjet printer, ribbon coder |
|
Operation Mode |
Foot pedal or automatic sensor mod |
|
Custom Support |
|

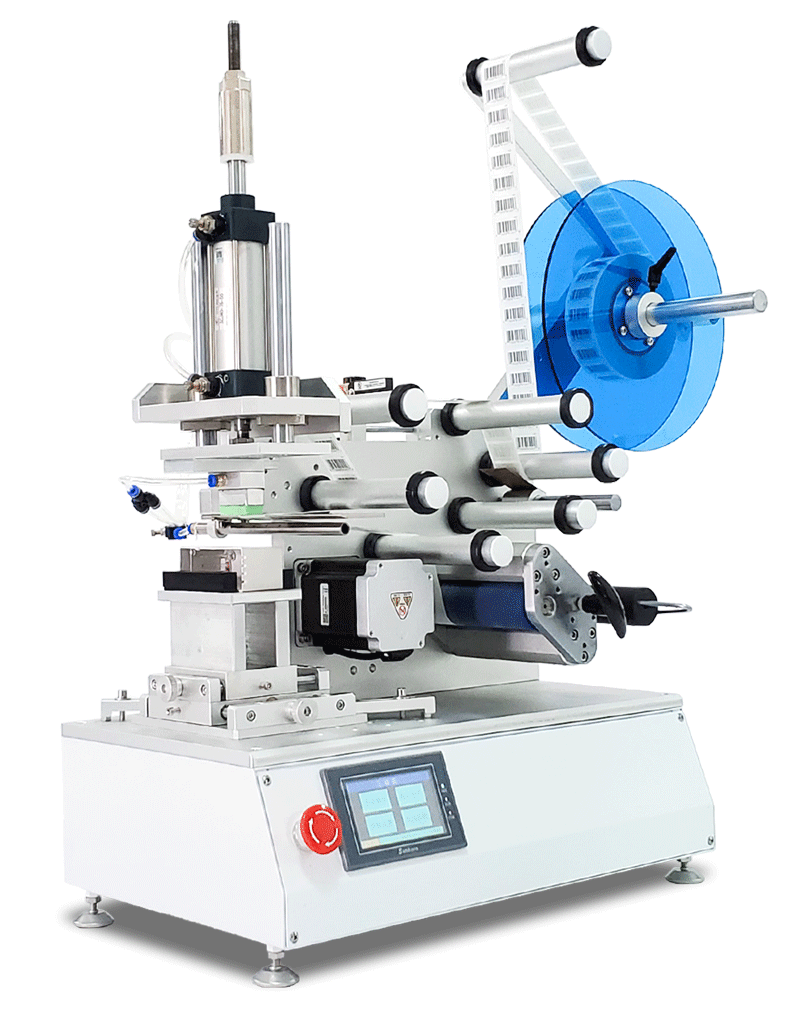

Structure Detailed of Semi-Automatic Flat Labeling Machine
Our semi-automatic flat labeling machine is designed for efficient and precise labeling on flat and irregular surfaces. Stainless steel and aluminum alloy are the main materials, and replacement fixtures can be compatible with different products.The labeling position can be adjusted.
Label Roller
Extract Structure
Adjusting Base
Recycling
Electric Cabinet
Touch Screen
Emergency Button
Label Tray
Label Sensor
Detects the position of the label on the roll and ensures accurate label application by signalling to the machine, preventing misalignment and waste of labels.
Blow Trachea
The blow trachea blows a stream of air to help position the label correctly on products, especially on surfaces like concave or convex shapes, where suction or pressure alone may not be sufficient.
Fixture
A fixture is a custom tool that holds and positions products for accurate label application.
Adjusting Base
The Settings of the machine, such as height or width, can be easily adjusted to suit different product sizes and labeling requirements.
Extract Structure
Used to extract the label and then apply it precisely to the product.
Recycling & Towing
Collect stripped paper or scrap to prevent accumulation and clogging and keep the production line clean.
Can Be Used for Labeling Hundreds of Different Products
To demonstrate the versatility of our semi-automatic flat labeling machines, here are some recent successful applications across various industries.
Semi Automatic Flat Labeling Machine for Various Industries
Our semi-automatic flat labeling machine is designed for use across various industries, providing efficient and precise labeling solutions for a wide range of flat and irregular surfaces.
Watch Our Semi Automatic Flat Labeling Machine in Action!
Delivering fast, precise, and efficient labeling for a variety of products with flat and irregular surfaces. See how it enhances production lines and streamlines labeling processes.
Why Choose Our Semi-Automatic Flat Labeling Machine?
At AUTmachine, we offer more than just a labeling machine – we provide a solution designed for efficiency, precision, and long-term reliability.
Versatile Labeling
Designed to label flat surfaces and irregular shapes, such as concave and curved surfaces. The machine can be customized to meet different product requirements, ensuring precise and efficient labeling.
Integrated Coding
Optional ribbon coders or inkjet printers allow you to print production dates and batch numbers directly on labels. This feature integrates coding and labeling into one seamless process for added convenience.
Customizable Fixtures
Easily adjustable fixtures allow the machine to handle a wide variety of irregularly shaped items. This flexibility ensures accurate labeling on products with unique or challenging shapes for diverse applications.
Free Testing & Consultation
We offer free sample testing on our machines to ensure they meet your labeling needs. Additionally, our expert technical consultation helps you choose the right machine and optimize your labeling process.
Semi Automatic Flat Labeling Machine FAQs
It is a machine designed to label flat surfaces and irregular shapes on products, with a semi-automatic process that requires minimal manual intervention.
We offer technical support through phone, email, and on-site visits to assist with any operational issues or machine setup.
It can label flat and irregular surfaces, including concave, convex, and curved areas on various products.
Yes, it is ideal for small to medium-sized batch production, providing flexibility and efficiency for various labeling tasks.
