Corner Labeling Machine
The AUT-T807 Semi-Automatic Corner Labeling Machine is a specialized labeling solution engineered to apply labels across the corner or cap of a product. Unlike standard flat surface labelers, this machine features a unique top-pressing mechanism that folds the label accurately to create a “U-shape” or “L-shape” sea.
- Labeling accuracy: ±0.5mm
- Labeling speed: 10-20 pieces/minute
- Applicable Product Dimensions: Customized per product
- Applicable Label Dimensions: Customized per product
- Overall Dimensions: 580 × 500 × 900 mm (L × W × H)
Key Features of This Corner Labeler
Easy Operation
Equipped with a PLC control system and a bilingual (English/Chinese) touchscreen, making it easy to set parameters and switch between products.

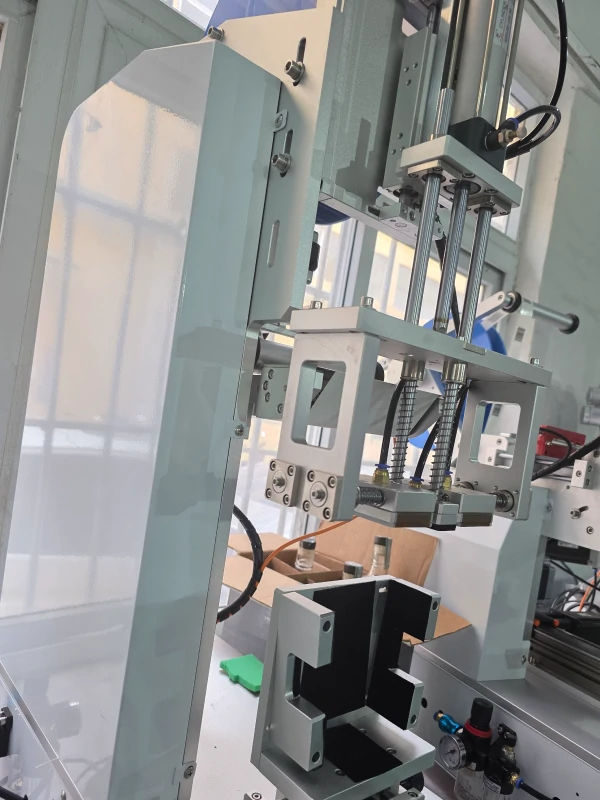

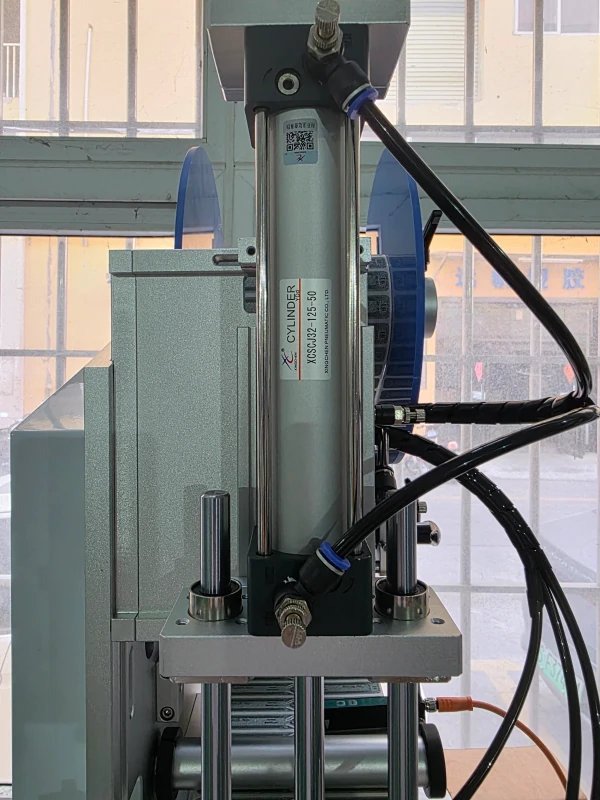

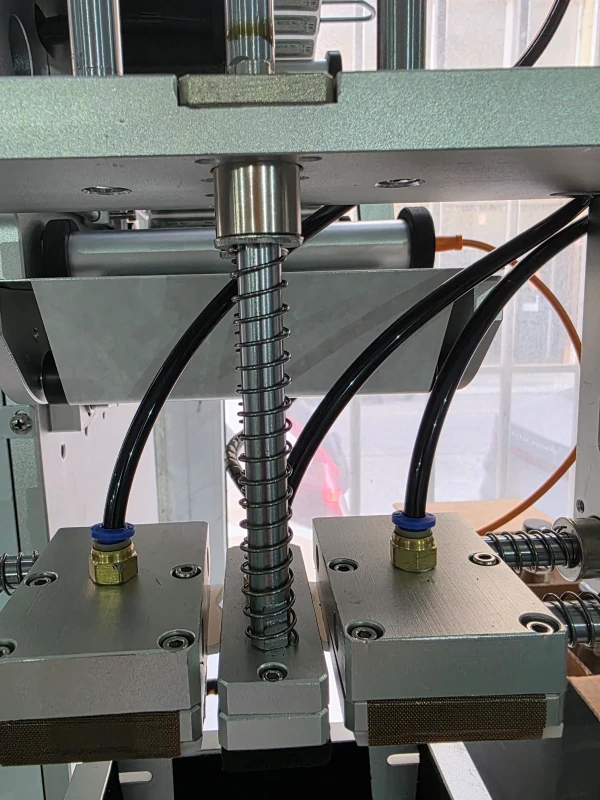

Adjustable Stroke
The pressing mechanism can be adjusted to fit different product heights and label lengths.

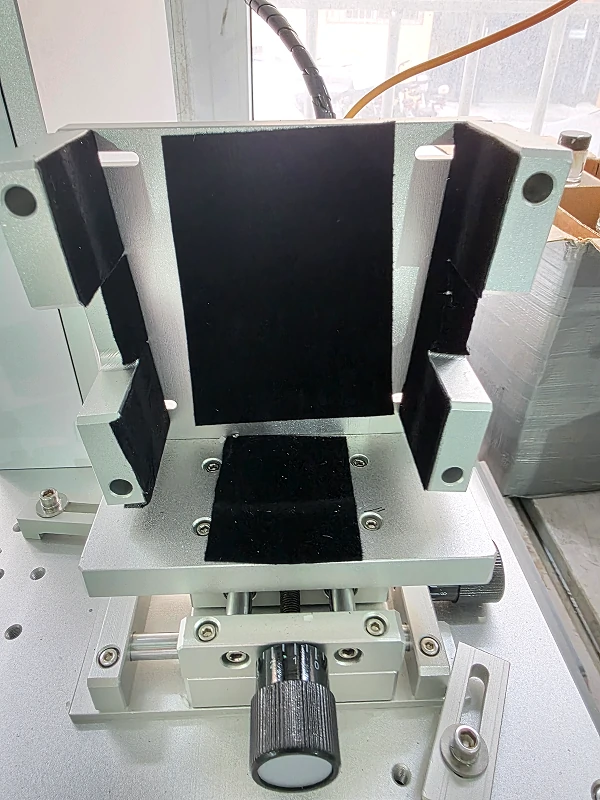

Customized Fixed Mold
We design a custom holding fixture (jig) for your specific bottle or box shape. This ensures the product does not move during the corner labeling process.
High-Precision Corner Application

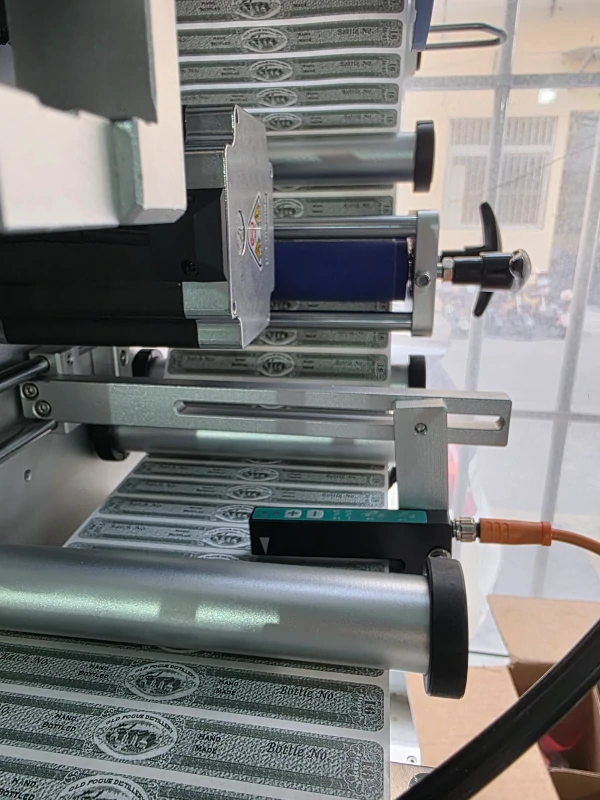

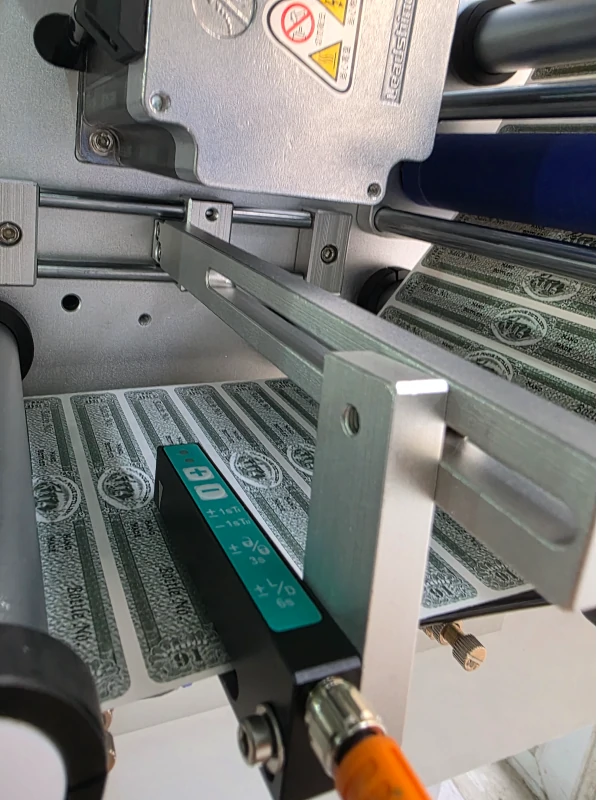

Built with a rigid structure and advanced sensors to achieve a placement accuracy of ±0.5mm. It ensures the corner label is centered and folded perfectly every time.
Applications
This corner labeling machine is widely used for applying tax stamps on liquor bottles, tamper-evident seals on pharmaceutical cartons, and security labels on food jars. It ensures that your product complies with packaging regulations while providing visible security to your customers.

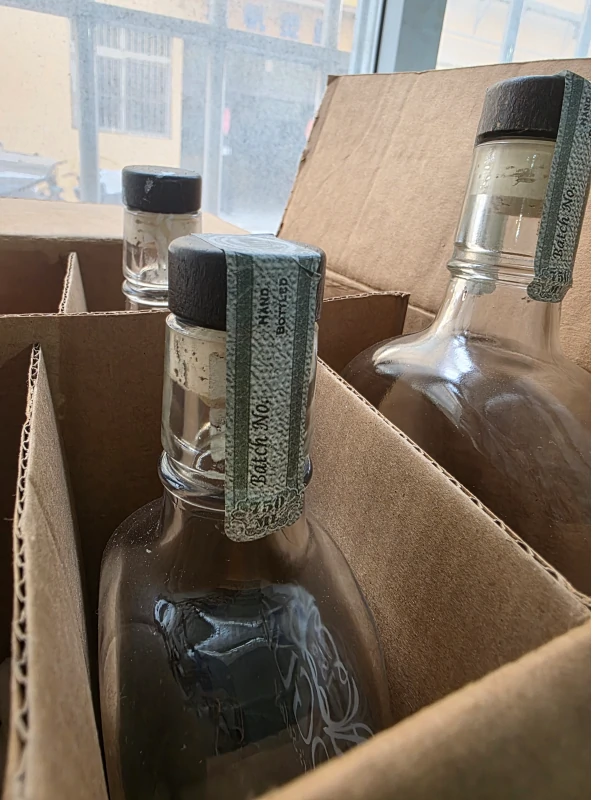

Beverage Industry: Applying tax strips or revenue stamps over the caps of liquor and wine bottles.
Pharmaceuticals: Sealing medicine boxes with “L-shape” corner labels to prevent tampering.
Food Packaging: Applying freshness seals on jar lids (e.g., sauces, jams) extending to the bottle neck.
Electronics & Hardware: Sealing retail component boxes.
Technical Specifications
| Parameters | Data |
| Model | AUT-T807 |
| Machine Type | Semi-Automatic Corner Labeling Machine |
| Labeling Accuracy | ±0.5 mm |
| Labeling Speed | 10–20 pcs/min (Depending on manual loading) |
| Applicable Product Size | Customized (Based on your sample) |
| Applicable Label Size | Customized (Based on U-shape/L-shape design) |
| Label Roll Size | ID: Φ76mm / OD: Max Φ250mm |
| Dimensions (LWH) | Approx. 580mm × 500mm × 900mm |
| Weight | Approx. 48 KG |
| Air Pressure Required | 0.4 – 0.6 Mpa |
FAQ
Q: Can this corner labeling machine handle different bottle shapes?
A: Yes. The machine body is universal. You only need to change the customized mold (jig) to switch between a square bottle and a round bottle.
Q: What is the maximum length of the label for corner application?
A: The stroke is adjustable, but generally, it handles standard tax strips and sealing labels easily. Please share your label size with us for confirmation.
Q: Is it difficult to install?
A: No, the machine is shipped as a complete unit. You only need to connect the power cord and the air hose (air compressor required) to start using the corner labeling machine.
Workshop of Corner Labeling Machine
Contact us
If standard labeling machines don’t meet your needs, we can manufacture a custom labeling machine based on your production requirements!
